★ 8 Ways output, 1 ways input

★ Four ways dry contact output

★ Passive system

★ No power system( Pick up power from Receivers)

*Gain: 0-30dB, digital display step adjustable;

*Digital gain: LED digital display, clearly shows the current amplifier gain;

*Serial command control;

*Input port power setting;

*Applications:GPS signal indoor, Timing, Survey, Wireless Communication etc.

▷Full GNSS Band:GPS/GLONASS/Beidou/Galileo/IRNSS/QZSS/SBAS/NAVIC;

▷Frequency Range:1164~1616MHz;

▷Gain(amplified):0dB ~ 10dB(Be specified);

▷Pass DC from J1, to In Port(Standard);

▷Pass DC from J1~J8 to In Port(Optional);

▷DC Power Adaptor(Optional);

▷High Isolation: >30dB;

▷Low Noise Figure: <2.5dB

▷Avaible In TNC, SMA, BNC and N Connectors.

▷Programing Control the DC Pass or Block All Ports;

▷Monitoring The Voltage of All The Ports;

▷Connecting the PC Via The RS232 Port;

▷Design For R&D and Manufacture Test;

▷Full GNSS Band:GPS/GLONASS/Beidou/Galileo/IRNSS/QZSS/SBAS/NAVIC;

▷Frequency Range:1164~1616MHz;

▷Gain(amplified):0dB ~ 10dB(Be specified);

▷DC Power Adaptor(Standard);

▷High Isolation: >30dB;

▷Low Noise Figure: <2.5dB

▷Avaible In TNC, SMA, BNC and N Connectors.

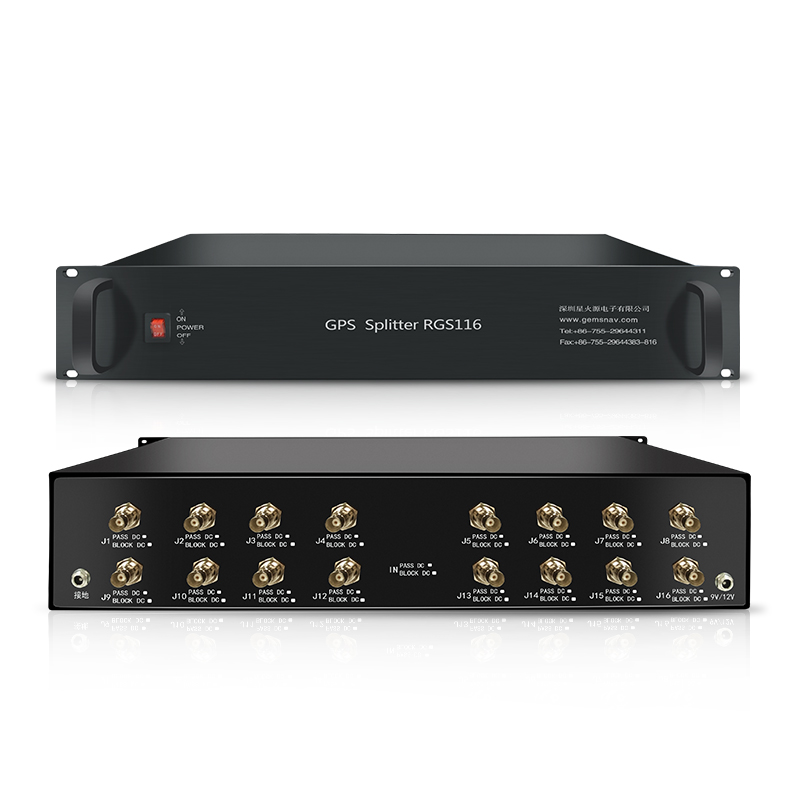

▷Full GNSS Band:GPS/GLONASS/Beidou/Galileo/IRNSS/QZSS/SBAS/NAVIC;

▷Frequency Range:1164~1616MHz;

▷Gain(amplified):0dB ~ 30dB(Be specified);

▷Pass DC to In Port(Standard);

▷Block DC on In Port(Be Specified);

▷DC Power Adaptor(Standard);

▷High Isolation: >30dB;

▷Low Noise Figure: <2.5dB

▷Avaible In TNC, SMA, BNC and N Connectors.

▷Housing: SMA 1U, Others 2U;

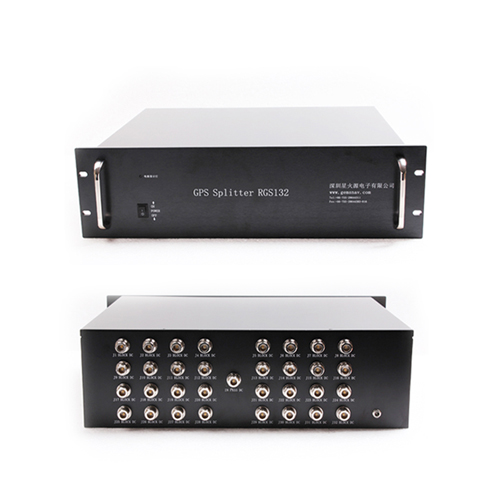

▷Full GNSS Band:GPS/GLONASS/Beidou/Galileo/IRNSS/QZSS/SBAS/NAVIC;

▷Frequency Range:1164~1616MHz;

▷Gain(amplified):0dB ~ 30dB(Be specified);

▷Pass DC to In Port(Standard);

▷Block DC on In Port(Be Specified);

▷DC Power Adaptor(Standard);

▷High Isolation: >30dB;

▷Low Noise Figure: <2.5dB

▷Avaible In TNC, SMA, BNC and N Connectors.

▷Housing: SMA 2U, Others 3U;

*All data ports and power signals are EMI filtered.

*Opening and closing action is manual side door opening.

*Welding process is unrestricted, good sealing, good shielding effect, reliable and sturdy design.

*Save operation time and improve work efficiency.

* Door opening method: manual front door opening;

* Integral welding box, good sealing, good shielding effect, reliable and solid design;

*All data ports and power signals are EMI filtered;
