Frequency Range [MHz]
1150~1700
Gain
3 dBi
Polarization
Vertical polarization
Input（VSWR）
≤1.45
Intermodulation
＜110dBm
Input impendence
50Ω
Max power
50W
Connector
N(Female), SMA(Female),etc.
【Mechanical Specifications】
Lightning Protection
DC Ground
Radome material
UV-Protected ABS
Dimension [mm]
Ø186×85
Weight [g]
400
Operating Temperature [℃]
-40~+60
Limit Temperature [℃]
-55~+70
Operating Humidity [%]
5~95
Circumstance
Indoor
【Installation Tips】
1. Please select the appropriate location on the ceiling drilling, pore size of which about 20MM, then tighten the nut fixing the antenna on the ceiling;
2. The thickness of the ceiling don’t exceed 20MM;
3. The antenna don’t close to the fire .

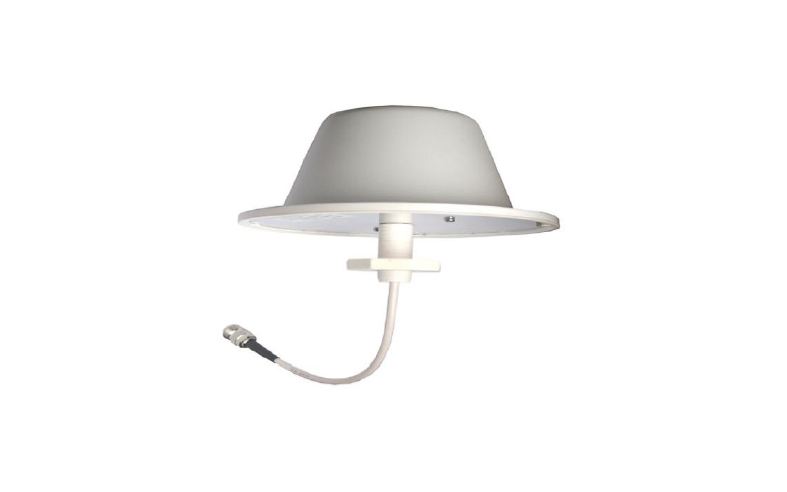

【Product details】

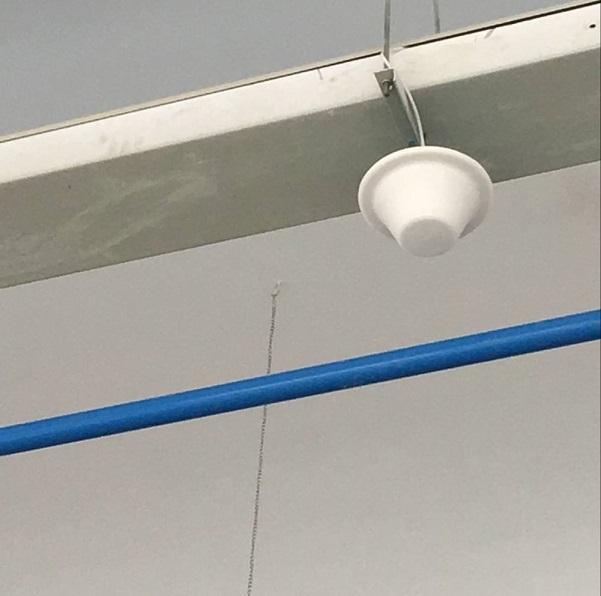

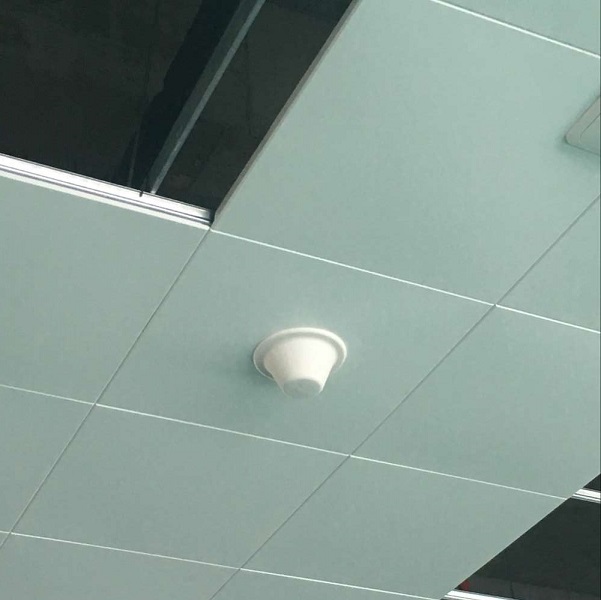

【Engineering Applications】

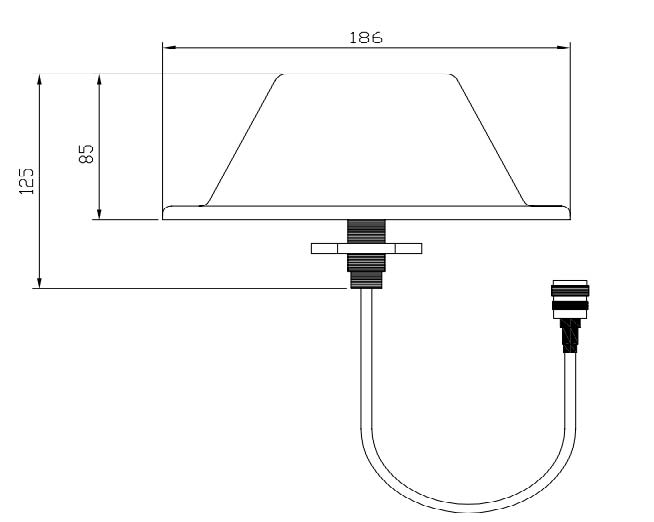

【Product Specifications】
.jpg)

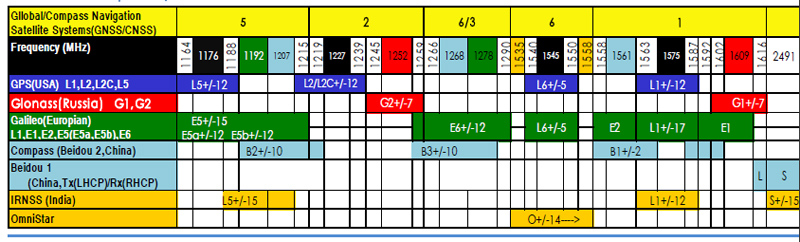

【Frequency reference table】
.jpg)
