GPS Antenna Specifications
Frequency range[MHz] |
1575.42±5MHz & 1561±5MHz & 1609±2MHz |
Gain[dB] |
38±2(contain LNA) |
Polarization mode |
Right-handed circular polarization |
Shaft ratio[dB] |
<5 |
3dBBeam width(°) |
110±10 |
Before-and-after ratio[dB] |
>10 |
connector |
N(Female) |
LNA Specifications
Frequency range[MHz] |
1575.42±5MHz & 1561±5MHz & 1609±2MHz |
Gain(dB) |
35±2 |
In-band flatness(dB) |
<2(1575.42±5MHz) |
<2(1561.098±5MHz) |
|
<2(1609±2MHz) |
|
Noise figure(dB) |
≤2.0 |
Out-of-band suppression(dBc) |
12(1575±30MHz) |
35(1575±50MHz) |
|
70(1575±100MHz) |
|
Standing ratio |
S11≤2.0dB(Input);S22≤2.0dB(Output) |
DC voltage[V] |
3.3~5 |
DC current[mA] |
≤50 |
1dBOutput point |
≥0 |
Anti-surge performance |
accord with GB/T17626.5-1999;idt IEC 6100-4-5;1995standard |
Mechanical Specifications
Radome material |
A B S |
Size[mm] |
Φ116×102 |
Weight[Kg] |
0.5(含GPS支架) |
Operating temperature[℃] |
-40~+80 |
Storage temperature [℃] |
-55~+85 |
Ambient humidity [%] |
90 |
Ambient wind speed [Km/h] |
135 |
Maximum wind speed [Km/h] |
200 |
Usage environment |
Outdoor |

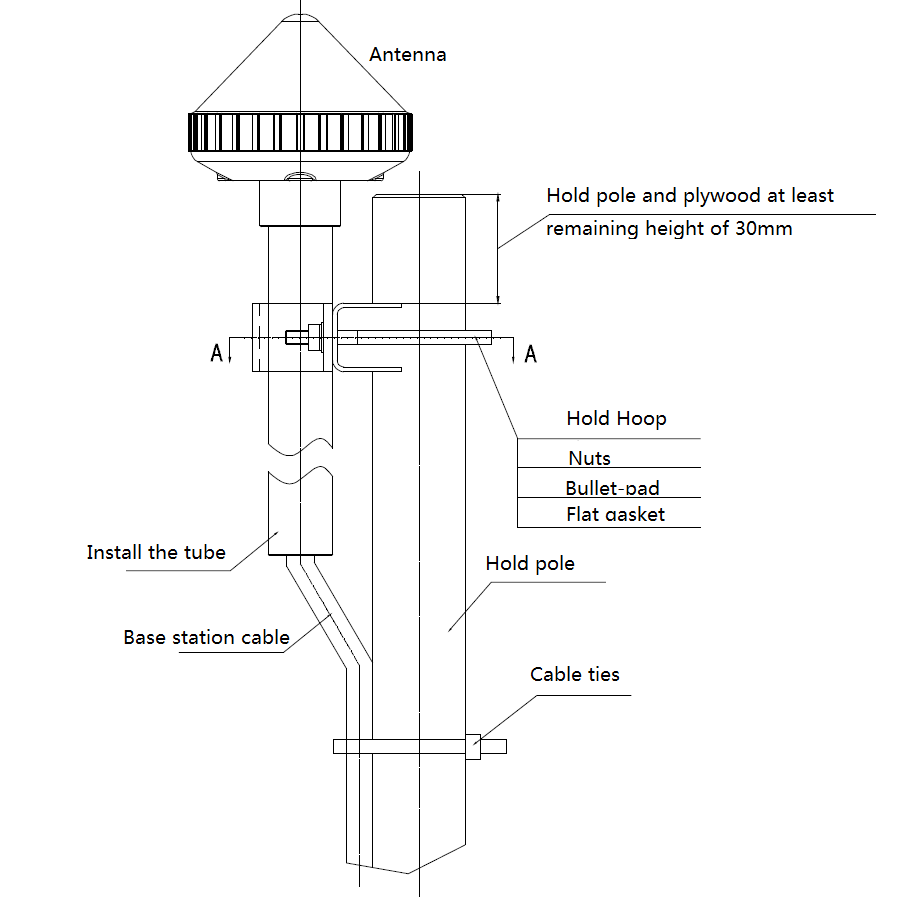

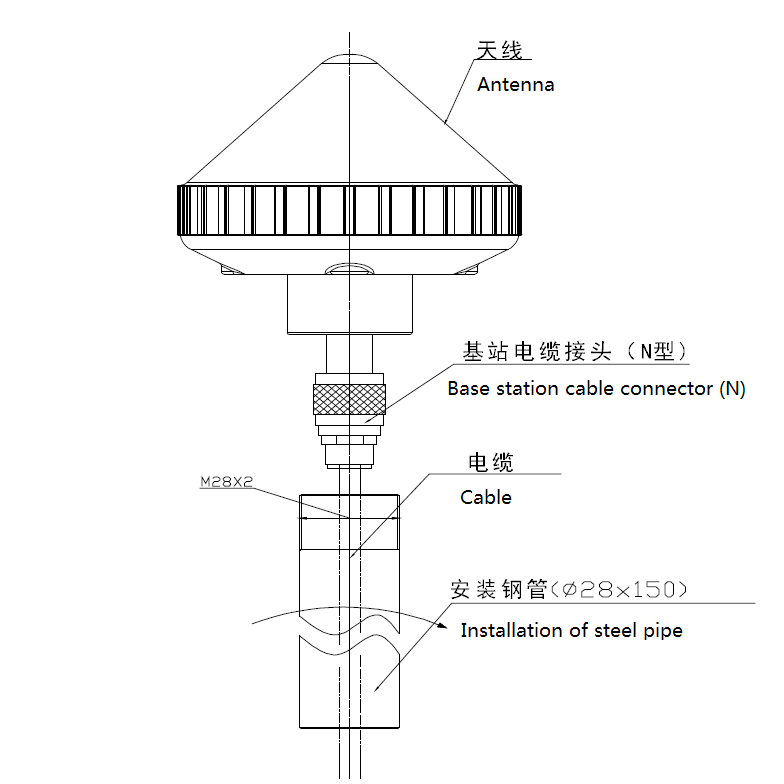

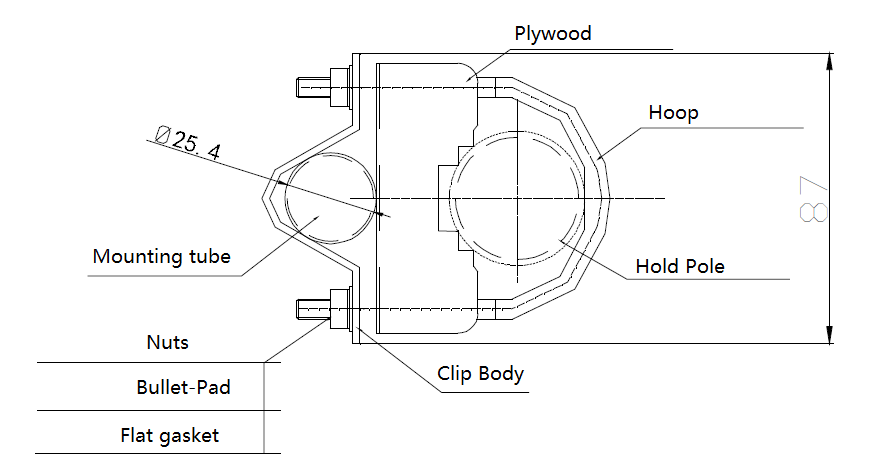

Antenna Dimensions
