【Functional Description】
GNSSRK-D-V is a repeater operates by receiving GPS & Beidou3 satellite signals with an antenna located outside the building and re-radiating the signals into the indoor area or covered space where satellite signal cannot reach.
GNSSRK-D-V is a single point GPS & Beidou repeater, one transmitting antenna transmit GPS L1 & Beidou3 B1 signal.
If need extend the system, you can apply multi‐system receiving antenna and sending antenna, which can support multi‐system, multi‐waveband satellite signal receive and transmit, so as to cover satellite signal indoor.
【Typical Application】
* For testing the cell‐ phone with GPS & Beidou , PND, car navigators, tracker, survey products, etc.
* Car parks, lab, aviation manufacturing hangar, trade shows, Emergency‐, safety vehicles, public transportation etc.

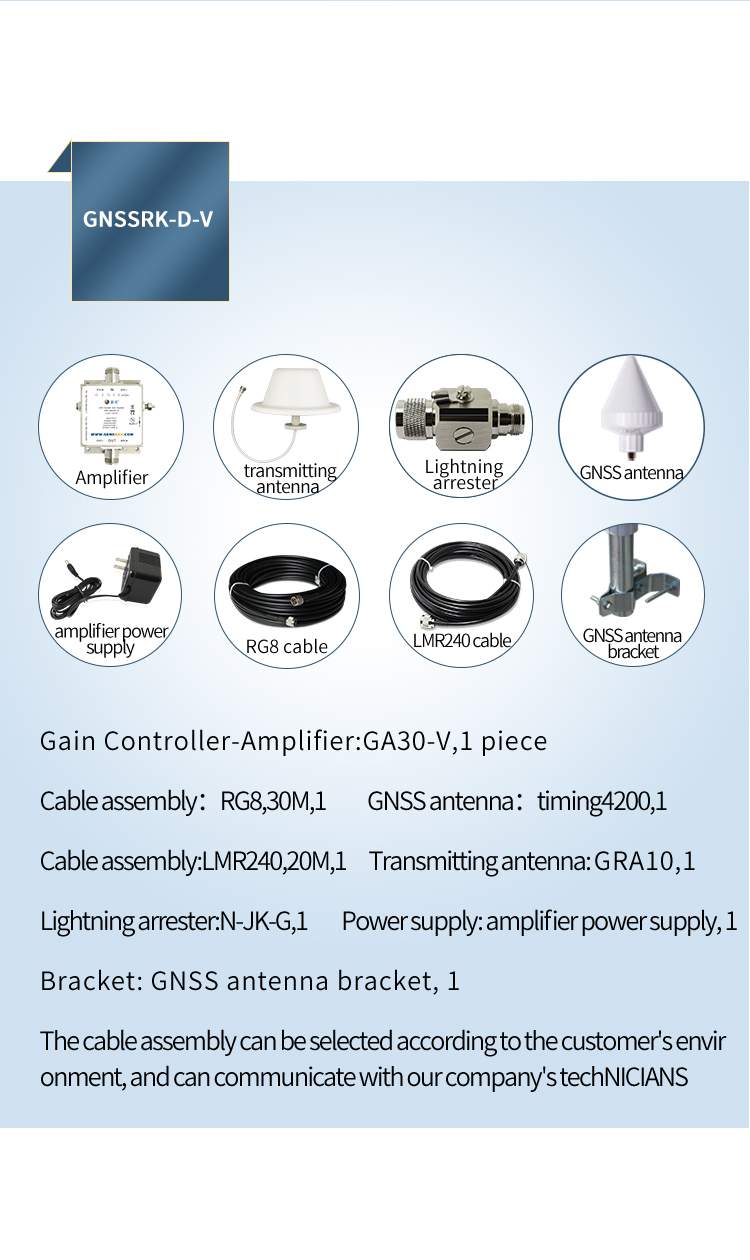

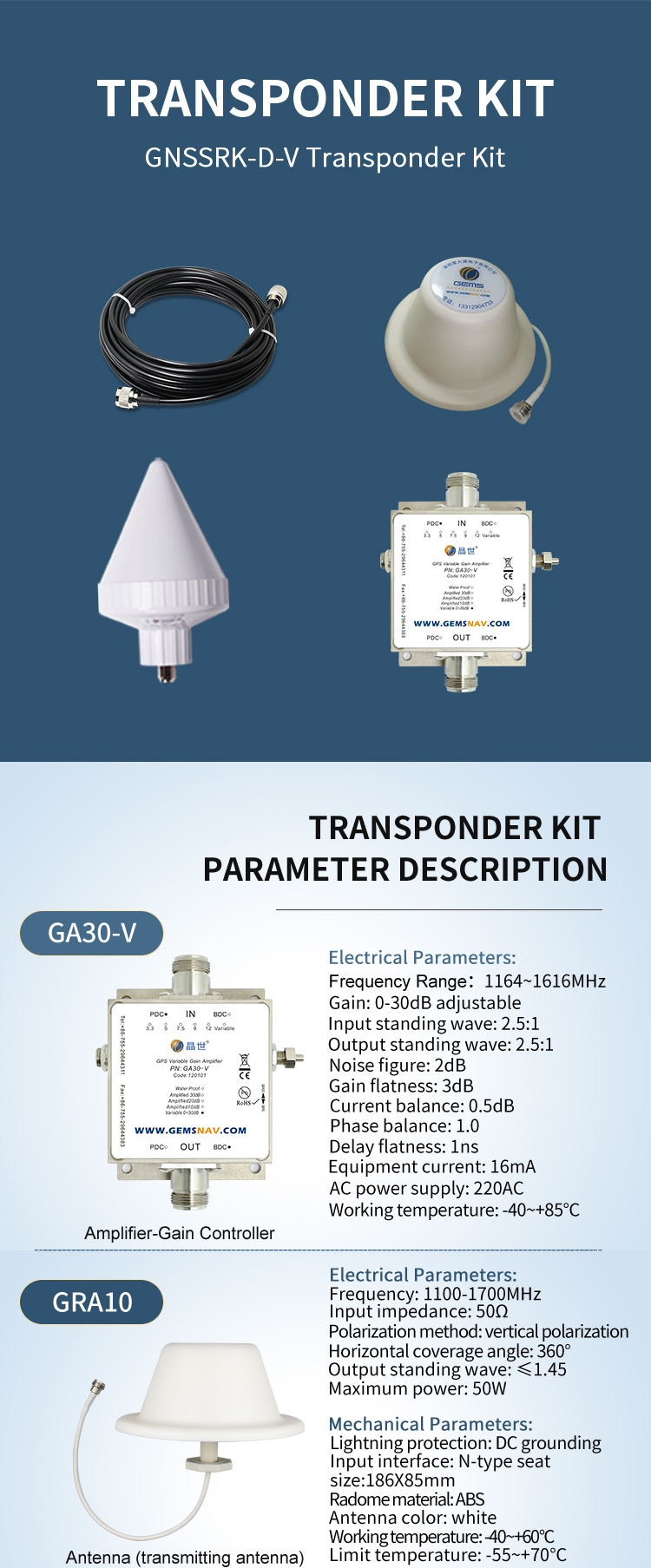

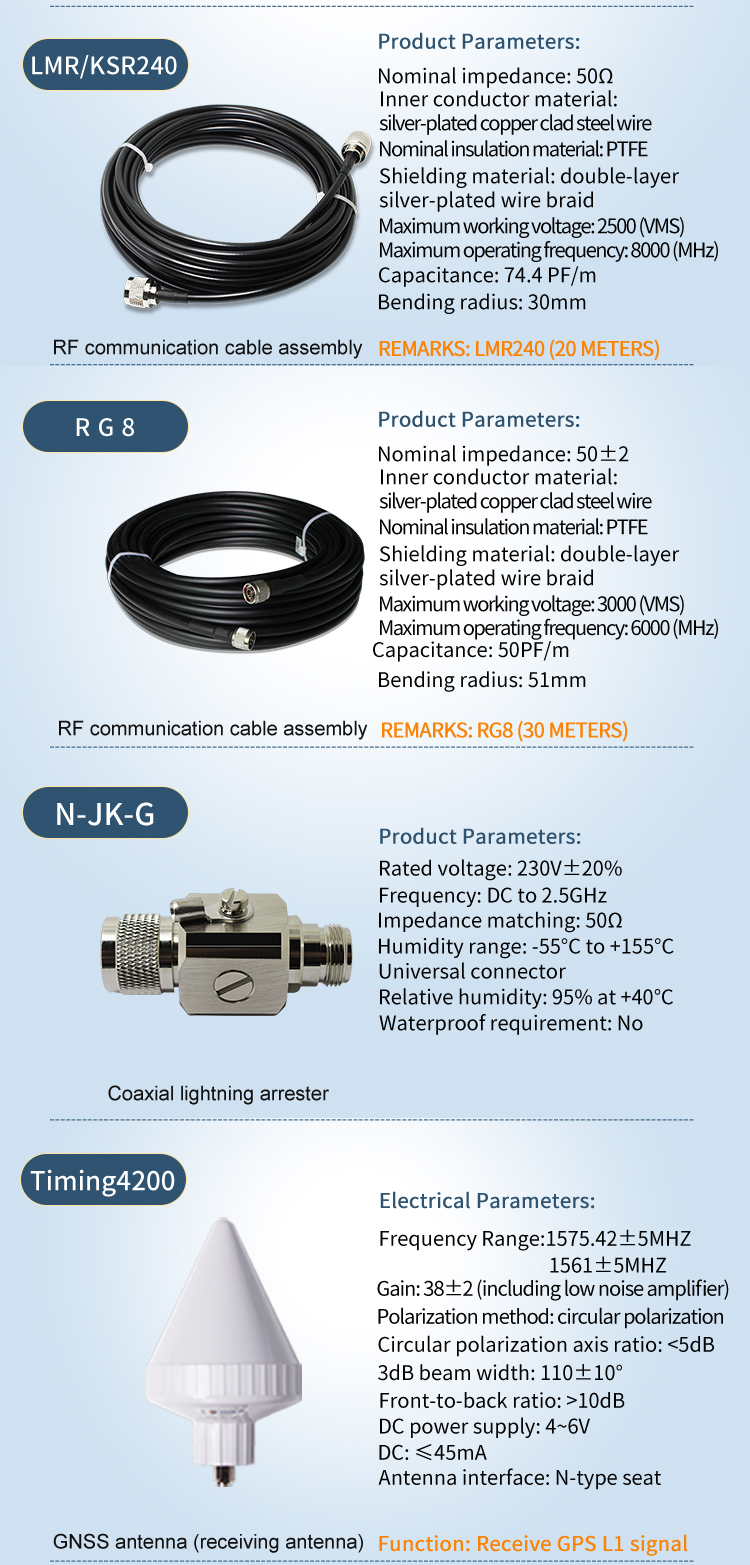

【Standard Configurations】
【Topological (Under standard configuration)】

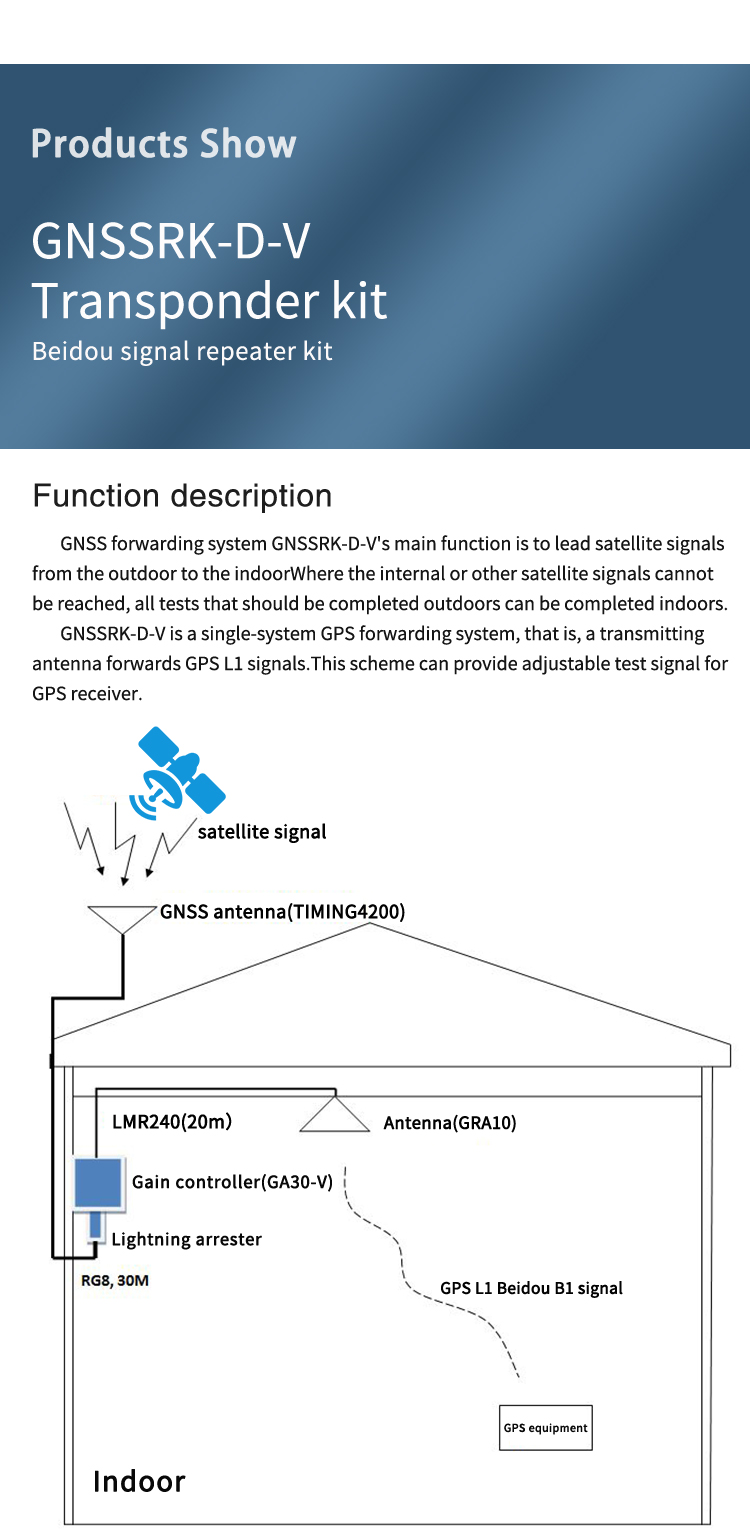

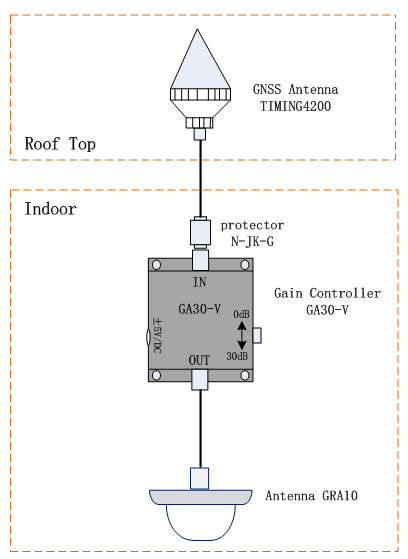

【System Schematic】

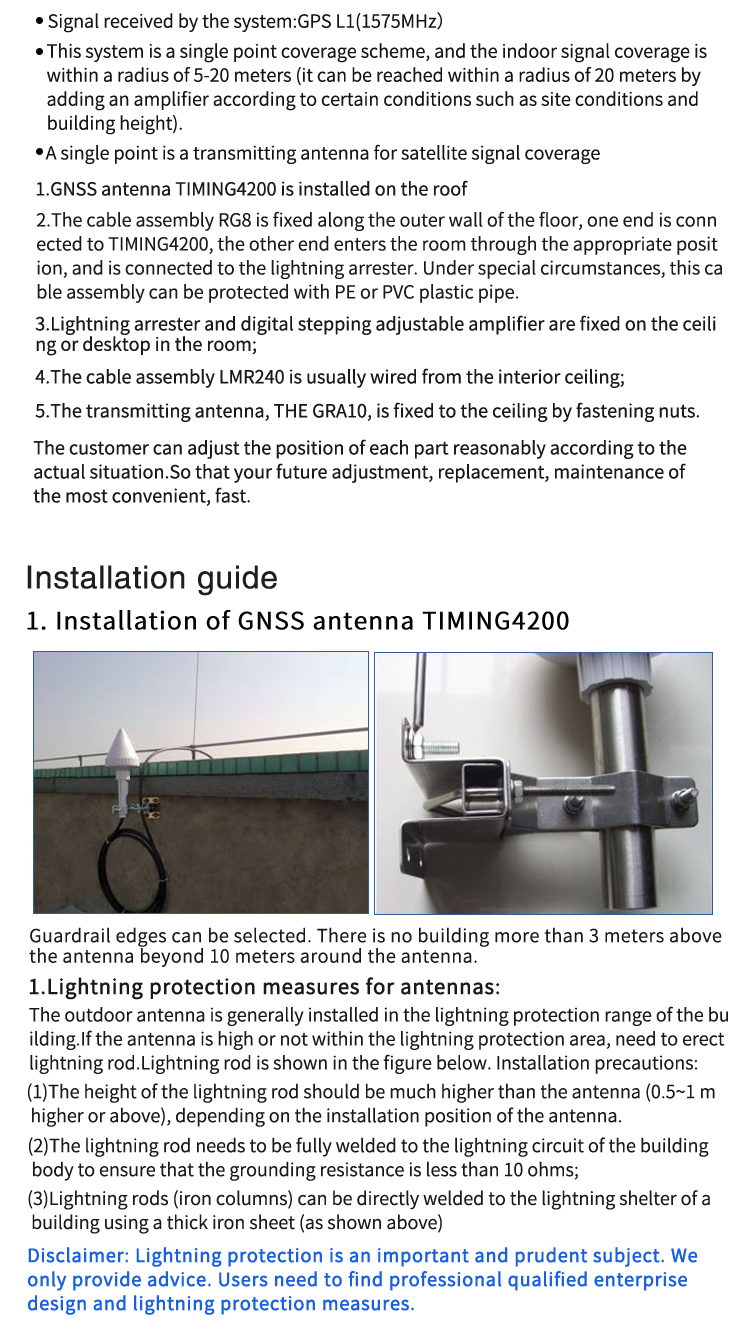

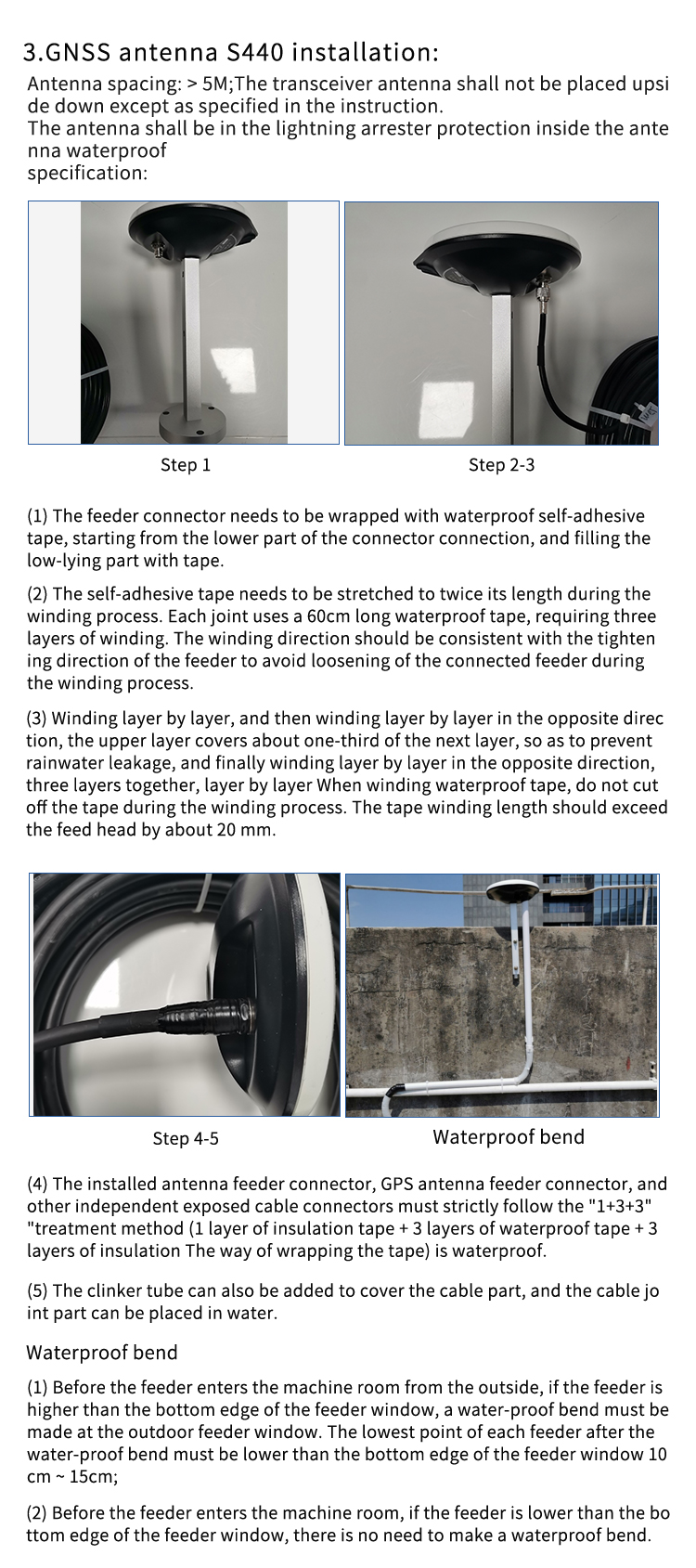

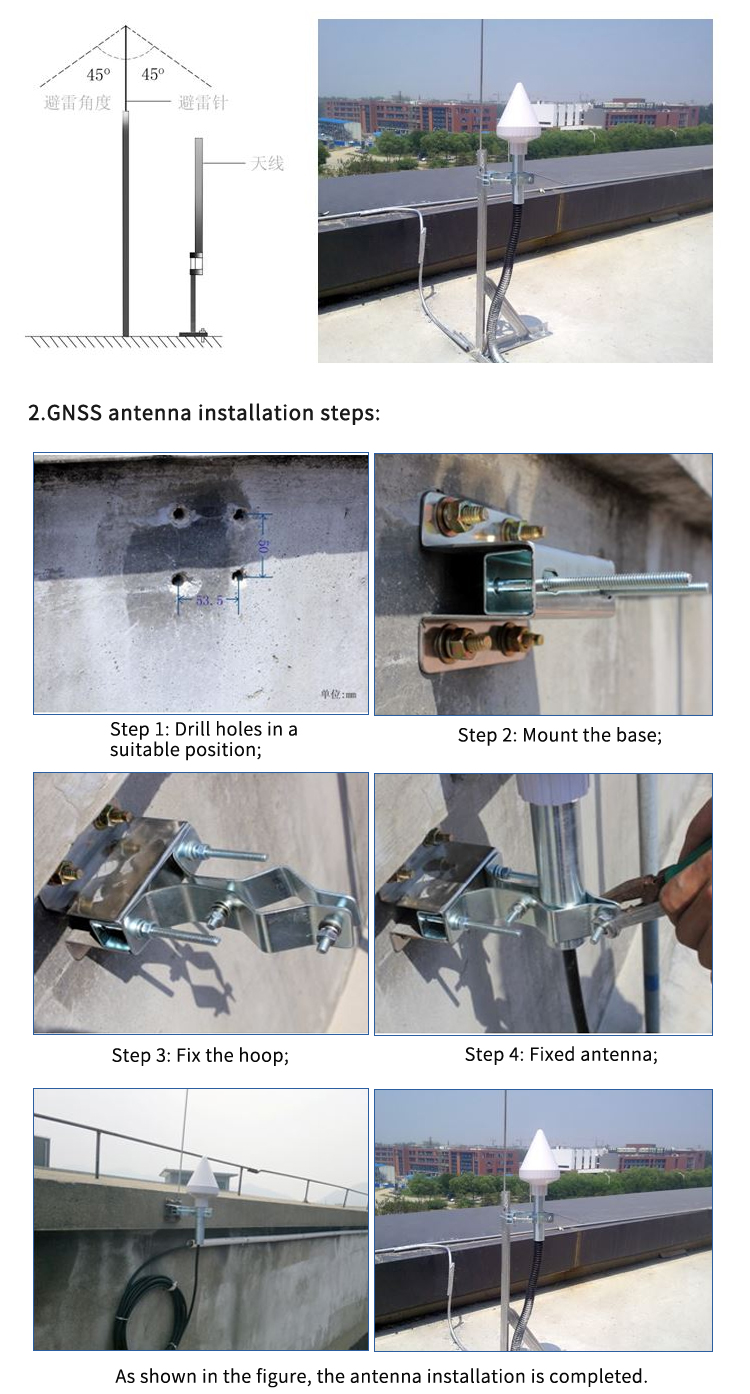

1. GPS Antenna(TIMING 4200) be installed on roof of the building;
2. Cable assembly RG8 fixed along the out wall, one terminator connects TIMING 4200,the another to protector at the appropriate place. In some special environment, select PE or PVC material plastic pipe to protect the cable assembly is quite sensible;

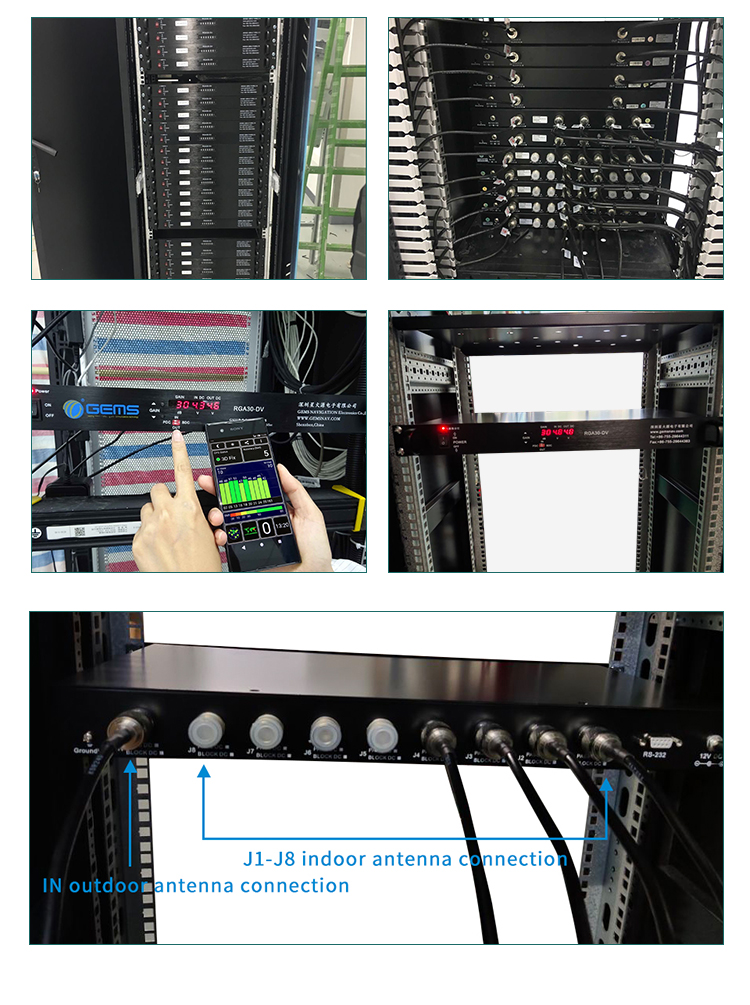

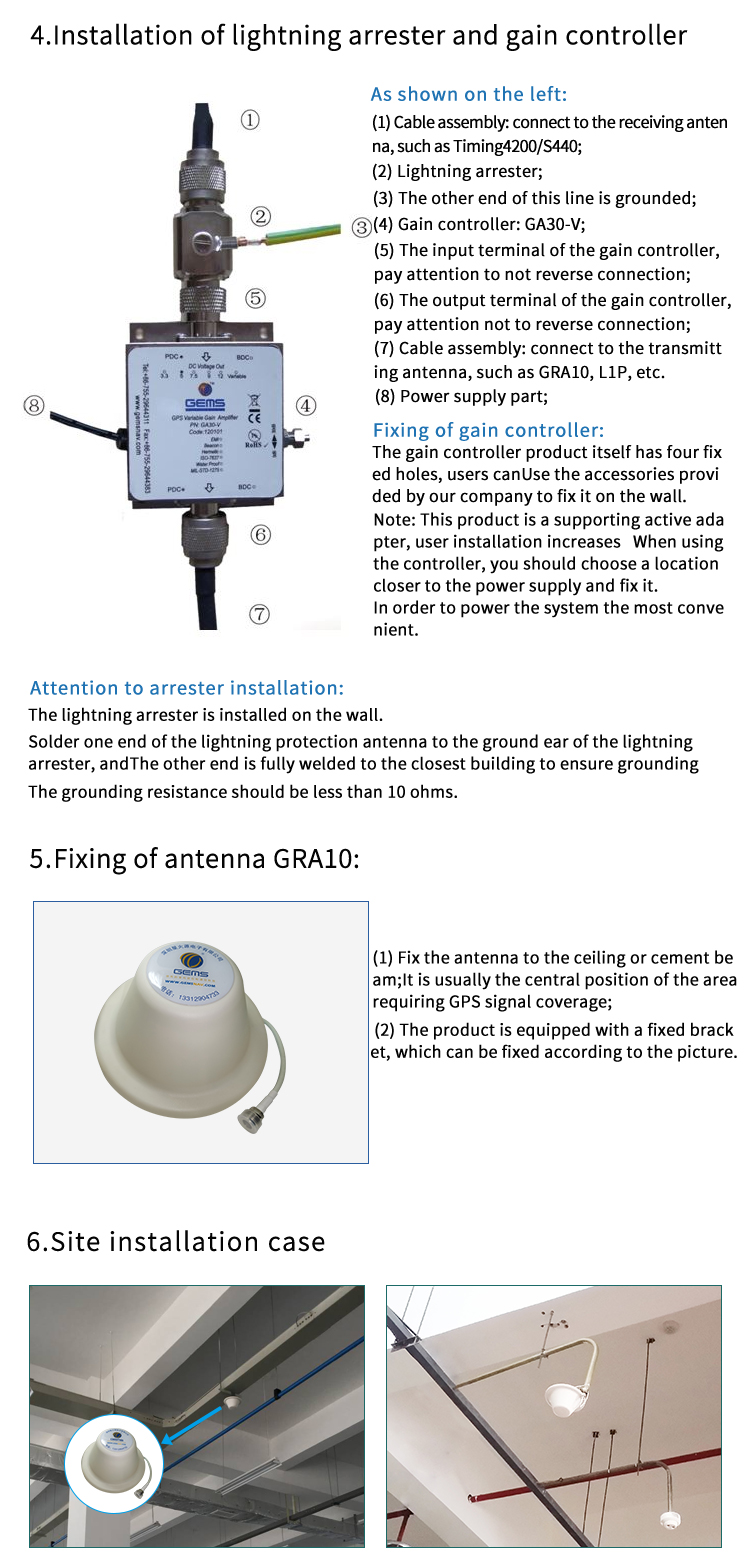

3. Protector, Amplifier and Gain controller are fixed on the wall indoor;
4. Cable assembly KSR240 is fixed along the ceiling of the operating place;
5. Antenna GRA10 be fixed on the ceiling or crossbeam.
6. According to the actual environment, you can adjust positions of some parts, which can make you the adjust, change and overhaul more easily.
