6-way 0-110dB Adjustable Attenuation Matrix GPA636

【Product Description】

The GPA636 is suitable for lab testing and controls 18 independent bidirectional RF channels . Users can easily simulate the path loss and combiner usage of each channel in a mobile scenario with each channel. The instrument supports all major wireless technologies, including CDMA, EVDO/GSM/UMTS/HSPA/LTE, and WiMAX.

【Features】

Product Name	GPA636
Suitable	Multi-channel independent attenuation application environment
Input/Output	6 into out of 18 independent attenuation control NF
Display	Resistance touch screen attenuation settings, function selection
Communication	RJ45/RS232
Control	18-way attenuation of independent network control, device keys independently controoled
Set	Network address,rate setting, communication rules setting
Power Supply	Power switch, power off memory
Height	2U standard cabinet
Decay Accuracy	0-31≤±0.3dB; 32-93≤±0.5dB; 94-120≤±2%
Connection Method	NF
Operating temperature	-10~50℃（14℉~220℉）

• Each attenuator can be manually pressed on the front panel and the screen touch adjustment;
• RS232 serial port or Ethernet command adjustment;
• The system supports 0-110dB attenuation per channel scan;
• Support for storage attenuation setting and recalls.

【Initial value description】

product name	OPA636
IP address	192.168.1.191
Subnet mask	255.255.255.0
Default gateway	192.168.1.1
port	4001
Default initial switch state	All channel attenuation 110dB

【letter of agreement】

The GPA636 series uses 10M/100Mbase Ethernet communication protocol, which can be easily connected to the network. The user can easily access the system via Ethernet. Support Telnet communication protocol, the user can control the system by typing ASCII code, or through the control software provided with the device to control.

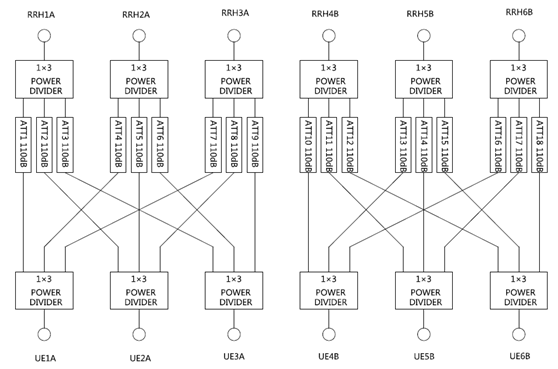

【Schematic Diagram】

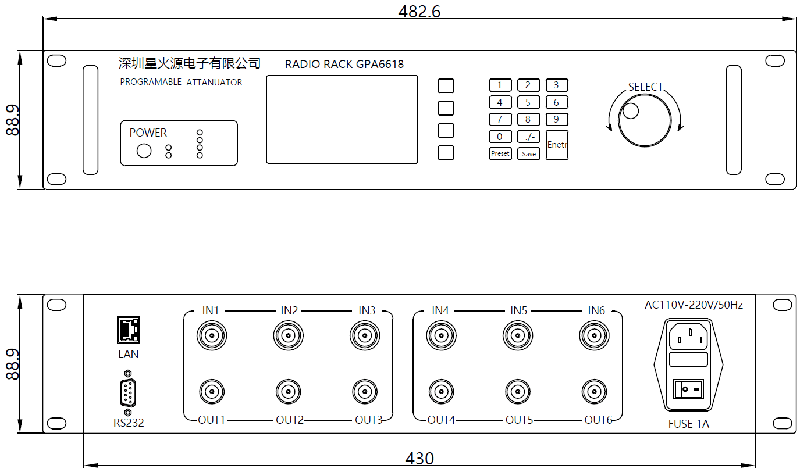

【Product Size】
