1.Functional Description

  • GNSSRK‐M-RDV is a repeater operates by receiving full-band GNSS signal: GPS/GLONASS/Beidou/Galileo/IRNSS/QZSS/SBAS/NAVIC satellite signals with an antenna located outside the building and re‐radiating the signals into the indoor area or covered space where satellite signal cannot reach.
  • GNSSRK‐M-RDV is a single point GPS/GLONASS/Beidou2/Galileo repeater, one transmitting antenna transmit GNSS signal. This solution offer adjustable test signal to receiver.
If need extend the system, you can add assemblies and sending antennas, so as to cover satellite signal indoor large area and more rooms or buildings.


2.Typical Application

  • For GPS/Beidou2/Glonass /Galileo products testing

* For testing the cell-phone with GPS/Beidou2/Glonass/Galileo,PND,Car, navigators,tracker,survey products etc.

  • For the purpose of GPS/ Beidou2/Glonass/Galileo signal covering

* Car parks, lab, aviation manufacturing hangar, trade shows, Emergency, safety vehicles, public transportation etc.

3.Standard Configurations

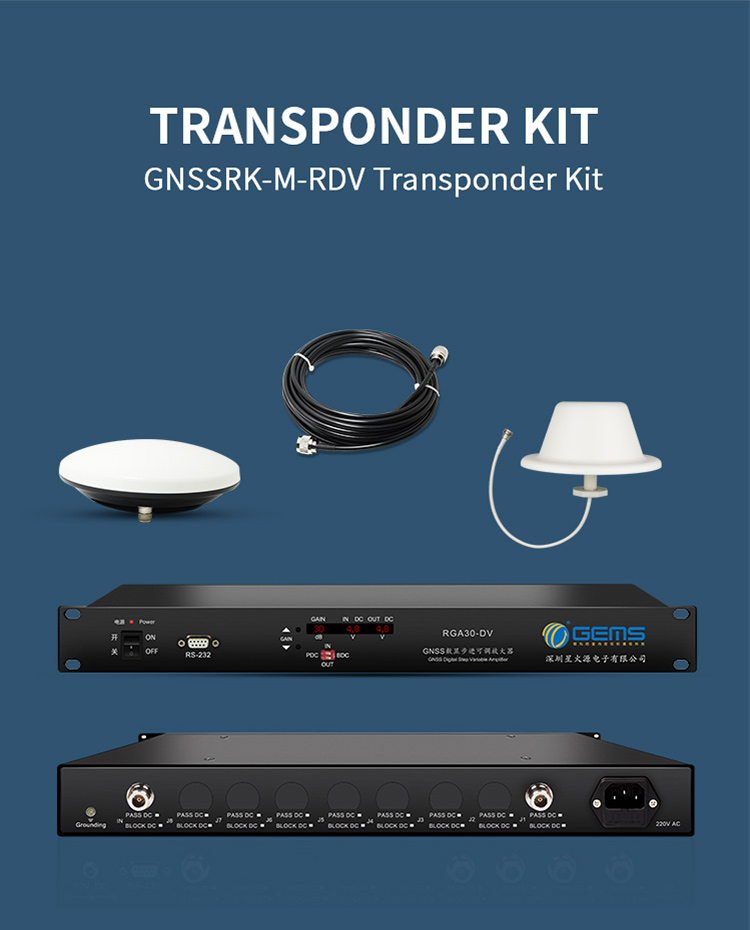

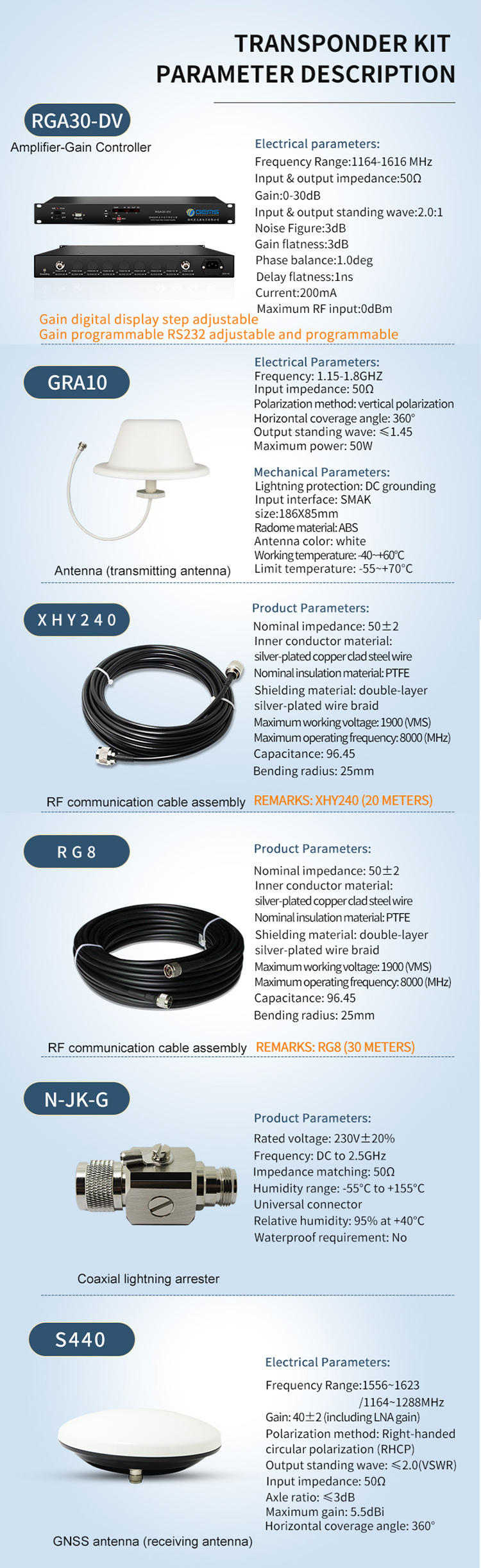

  • Amplifier: RGA30-DV ,1 ea;
  • Receiving Antenna: S440,1 ea;
  • Cable Assembly: RG8,30M, 1ea;
  • Cable Assembly: XHY240,20M,1 ea;
  • Sending Antenna: GRA10,1 ea;
  • Ligting-protector: 1 ea;

The cable components can be selected according to the customers' environment and can communicate with our technicians.

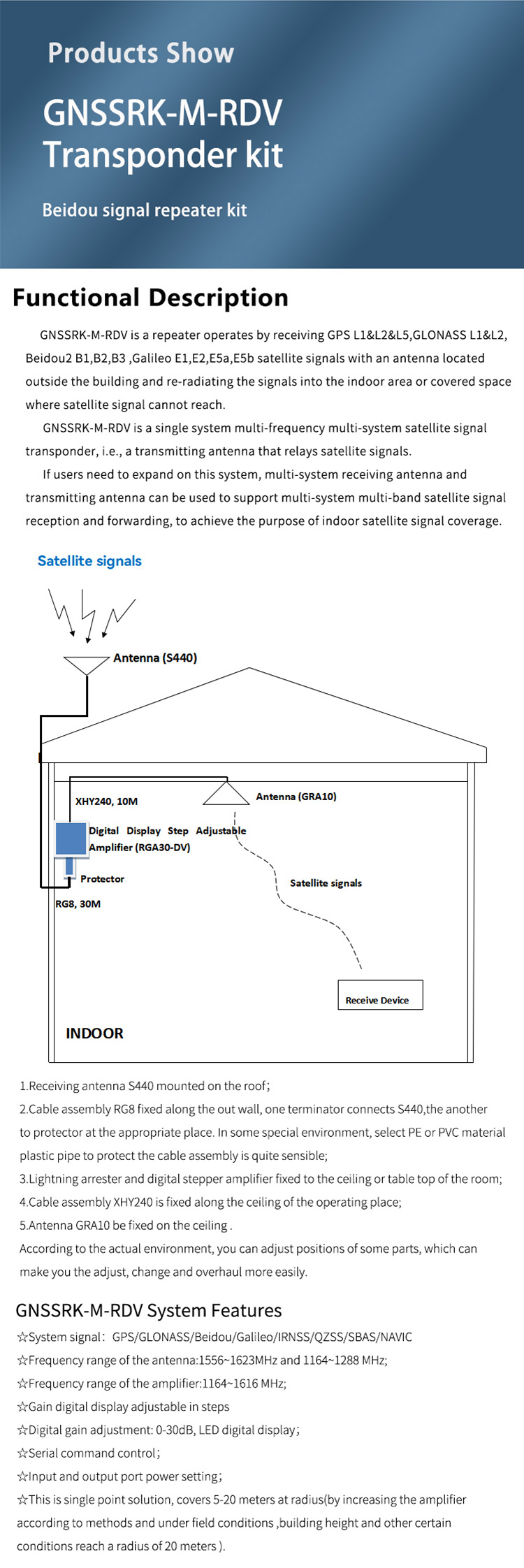

4.Topological (Under standard configuration)


5.Kits include
5.1 Digital Display Step Adjustable Amplifier RGA30-DV
5.1.1 Function:
Used to adjust system gain, 0-30 dB adjustable, you can control when needed. The input and output can be set to energize 5V DC or not energized.
The system power supply voltage is 220V.
①and②are RGA30-DV input and output.
③For power control switch. System power-on when allocated to upward, opposite, system stops working.
④ For the gain adjustment button, you can adjust the gain size, you can adjust the controller gain increase or decrease. (Through the GAIN button to adjust. UP to the big, down to small.)
⑤For the input and output power state setting, IN for the input, Out for the output, PDC that power, BDC that does not power.
⑥For the digital display, showing the current gain value of the amplifier, and the voltage of
the input and output ports.

5.1.2 Specification


Parameter

Condition

Mini

Std.

Max

Unit

Frequency Range

In ,Out, 50Ω

1150



1650

MHz

Impedance

In ,Out



50



Ω

Gain

Digital Step Adjustable



0~30



dB

Input VSWR







2.0:1

-

Output VSWR







2.0:1

-

Noise Figure







3

dB

   Gain Flatness







3

dB

Delay Flatness





1



ns

Power Input

12V DC Adaptor



12



VDC

Current







250

mA

1dB Compression

RGA30-DV





-4

dBm

RGA30-DV4

-29

RGA30-DV8

-29

Max RF Power

RGA30-DV





0

dBm

RGA30-DV4

-23

RGA30-DV8

-27

Nun. Of input

GA30-DV,GA30-DV4,GA30-DV8



1



个

Nun. Of Output

RGA30-DV



1





RGA30-DV4

4

RGA30-DV8

8

Max RF Input

Maximum lossless RF input





0

dBm

Working Temperature



-40°



85°






Product

Solution

Contect Us
