Product Name: Shielding Box
Product model: PB0320
Product Code: 12100320
1. Application:

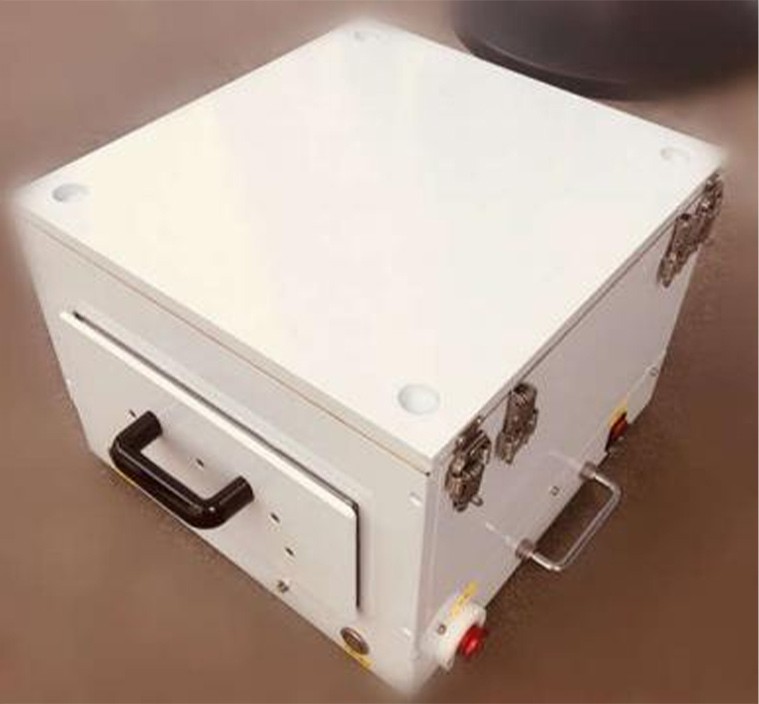

PB0320 is a pneumatic drawer type shielding box, its working size is large, suitable for wireless network cards, routers, mobile phones and other wireless communication equipment or PCB board detection.
The shielding box is made of 12MM aluminum plate welding, with good shielding and firm structure. Programmable horizontal entry and exit, suitable for building automated production tests.
2. Main functions and scope of application:
This shielding box is suitable for wireless communication testing
EMI test, EMS test
Coupling test, (coupled antenna additional)
RF functional test WIFI
3. test structural performance indicators:
Working frequency: 800MHz-6GHz
Shielding effect: 800M Hz-6GHz 70-80dB
Box size: L360*W380*H270mm
Working size: L320*W340*H165mm
Material: 12MM aluminum plate
Net weight: 20KG
Appearance color: off-white

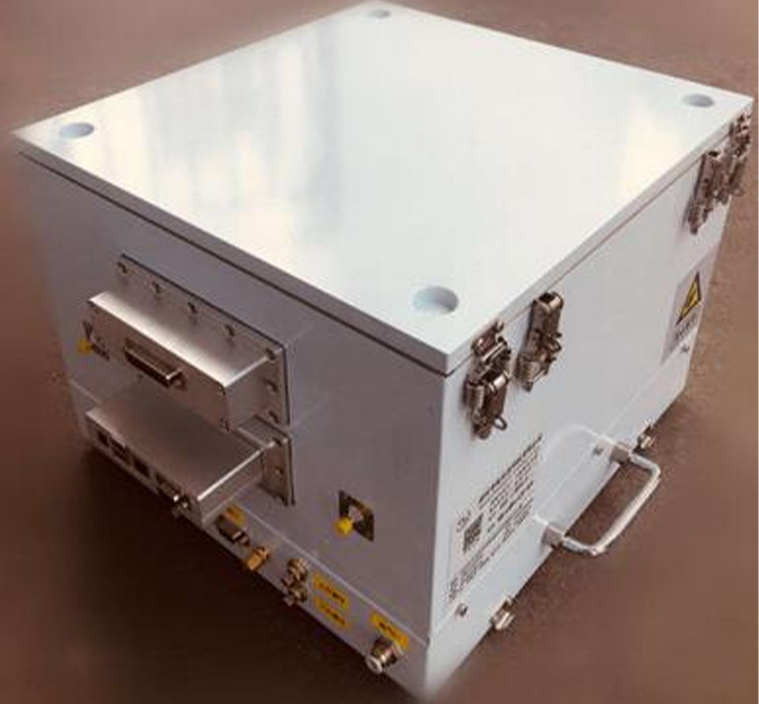

4. Wiring port
|
Interface name |
Interface specifications |
|
SMA-SMA |
Characteristic impedance 50 ohms, frequency range 0-6GHz |
|
DB9 |
4.5Mbps, withstand voltage DC 0-60V/1.3A |
|
USB 2.0 |
Standard USB2.0 data transfer 480Mbps/1.5A |
|
DC power supply |
direct current 0-100V/3A |
|
Internet |
Standard 1000M network port, data transmission/1.6A |
|
Instead of plates |
spare |
