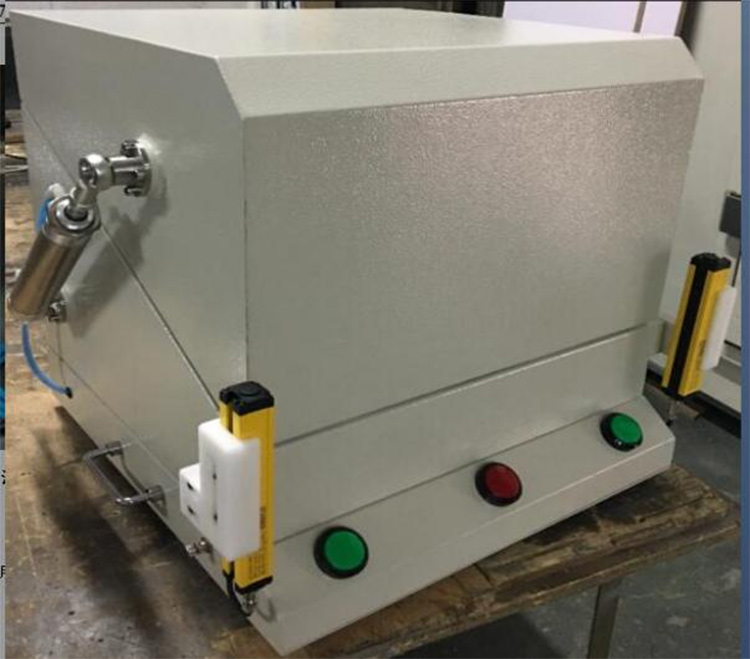

Product Name: Shielding Box
Product model: PB0317
Product code: 12100317
Operation mode: pneumatic
1. Main functions and scope of application:
This shielding box is suitable for wireless communication testing
EMI test, EMS test
Coupling test, (coupled antenna additional)
RF function test WIFI test
2. Structural performance index:
Operating frequency
800MHz-6GHz
Shielding effect
800M Hz-6GHz≥70dB
Box size
L440*W460*H400mm
Working size
L410*W430*H300mm
Material
2MM Stainless steel plate
net weight
20KG
Appearance color
Off-white

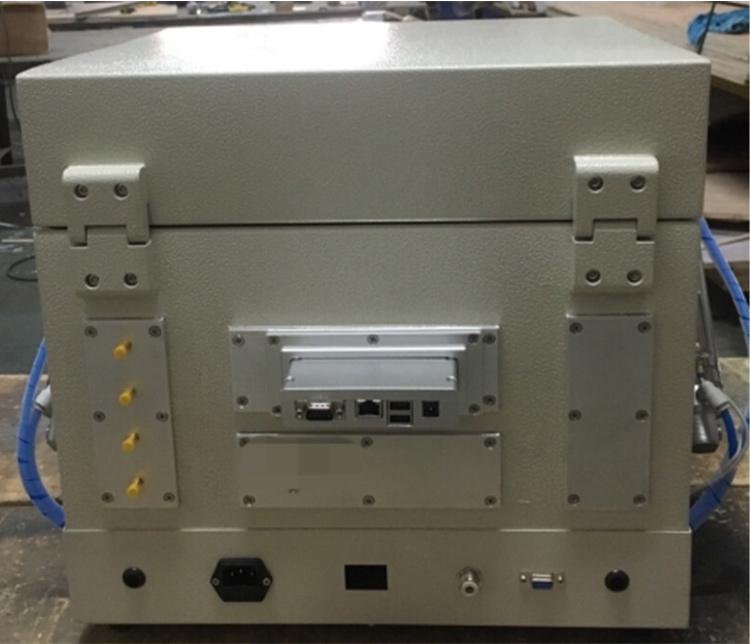

3. Wiring port (line port can be installed according to customer requirements)
|
Interface name |
Interface specifications |
|
SMA-SMA |
The characteristic impedance is 50 ohms, and the frequency range is 0-6GHz |
|
DB9 |
4.5Mbps, withstand voltage DC 0-60V/1.3A |
|
USB 2.0 |
Standard USB 2.0 data transmission 480Mbps/1.5A |
|
DCpower supply |
direct current 0-100V/3A |
