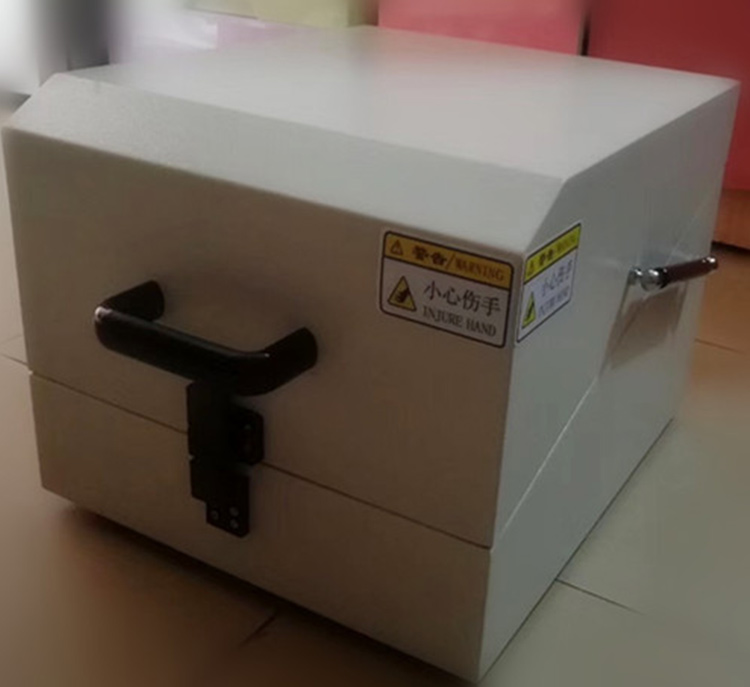

Product Name: Shielding Box
Product model: PB0313
Product Code: 12100313
Operation mode: manual
1. Main functions and scope of application:
This shielding box is suitable for wireless communication testing
EMI test, EMS test
Coupling test, (coupled antenna additional)
RF function test WIFI test
2. Structural performance index:
|
Operating frequency |
800MHz-6GHz |
|
Shielding effect |
800M Hz-6GHz≥70dB |
|
Shielding effect |
L380*W340*H260mm |
|
Working size |
L350*W320*H240mm |
|
Material |
2MM stainless steel plate |
|
net weight |
12KG |
|
Appearance color |
Computer gray |

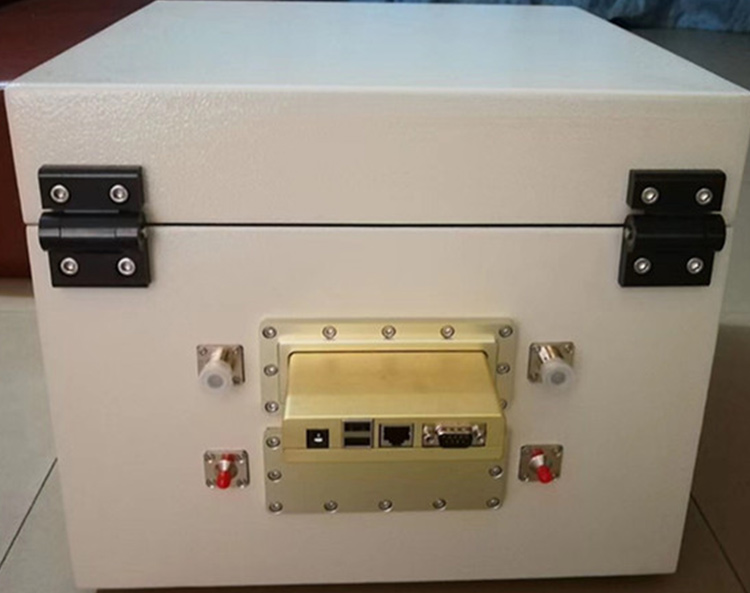

3. Wiring port
|
Interface name |
Interface specifications |
|
SMA-SMA |
The characteristic impedance is 50 ohms, and the frequency range is 0-6GHz |
|
DB9 |
4.5Mbps, withstand voltage DC 0-60V/1.3A |
|
USB 2.0 |
Standard USB 2.0 data transmission 480Mbps/1.5A |
|
DC power supply |
direct current0-100V/3A |
|
Internet |
Standard 1000M network port, data transmission/1.6A |
|
Instead of plates |
spare |
