Wanda Plaza-Indoor positioning and timing solution for bus par
2023.08.31
Location: Wanda Plaza Bus Car Park
Constructor: Shenzhen Starfire Source Electronics Co.
Construction date：2022.01.14
Keywords: GPS transponder, GPS power splitter, bus GPS, bus parking GPS, bus dispatch, GPS adjustable digital display amplifier, GPS Beidou timing antenna, bus positioning, bus timing, GPS signal coverage.
Project Description
In 2022, Starfire Source provided a bus company in Shenzhen with GPS satellite positioning signal amplifier equipment for the installation of an indoor positioning and timing system. Because most of the bus car park addresses are indoors or in the basement, the signal is blocked, resulting in no GPS Beidou signal and unable to locate and time the bus vehicles.
In view of the large area and weak signal of Wanda Square bus car park, we designed an 8-port GPS Beidou signal transponder coverage system to cover the GPS Beidou signal to meet the positioning and timing needs of bus vehicles.
Solution Description
This bus timing solution uses the GNSS timing antenna Tingmi4200, GPS line amplifier GA40, GPS power splitter and GPS adjustable digital stepper amplifier RGA30-DV8 to complete the forwarding and coverage of outdoor GPS signals. The strength of the satellite signal can be adjusted to achieve the reception of GPS Beidou signals by public vehicles, positioning and timing of bus vehicles in and out of stations.

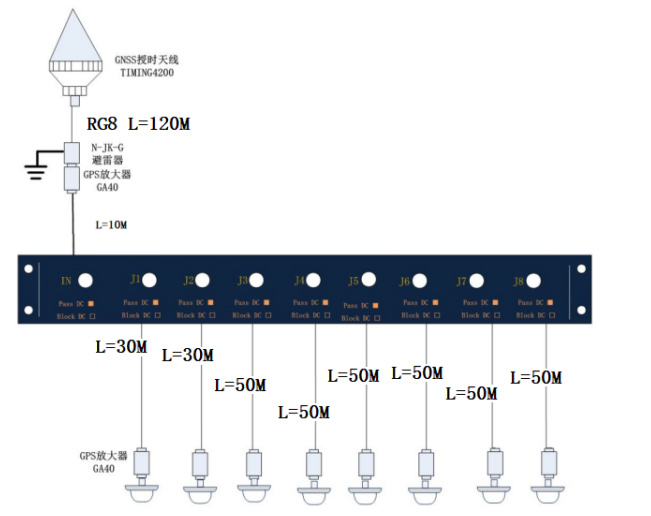

1. System connection diagram
Problems solved and technical difficulties
1. the problem of GPS signals not being received in the bus terminal (no positioning and timing) is solved.
2. the problem of complex indoor environment and serious interference of GPS signal
3. accurate positioning and timing in buses;
2. Pictures of the site

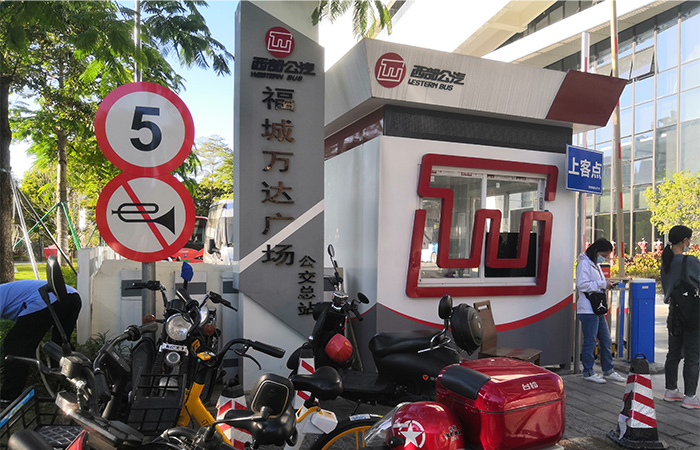

2.1 Pictures of the site

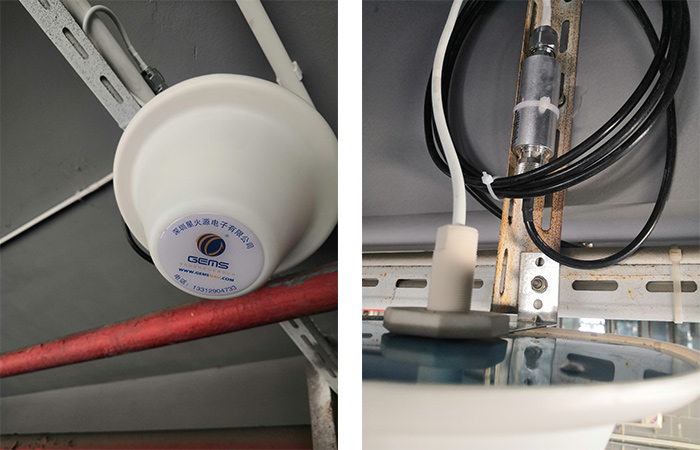

2.2 Indoor antenna GRA10

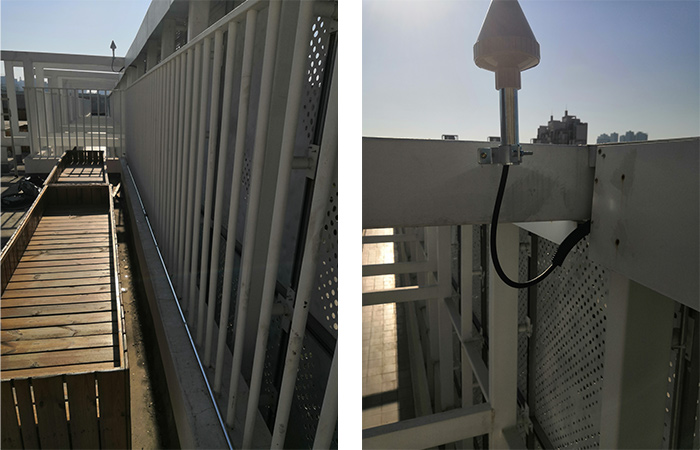

2.3 Outdoor antenna TIMING 4200

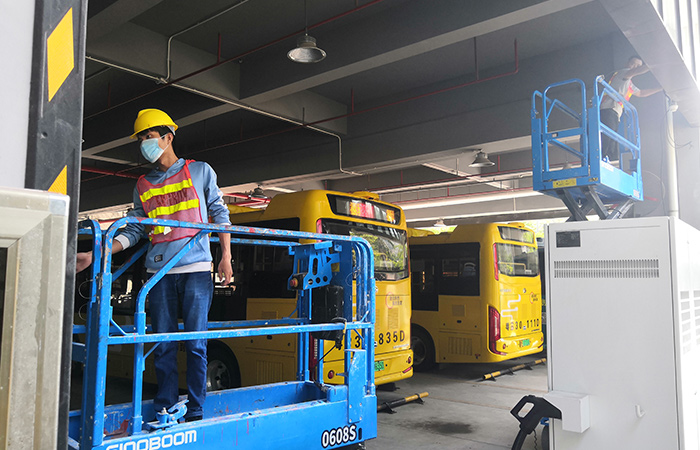

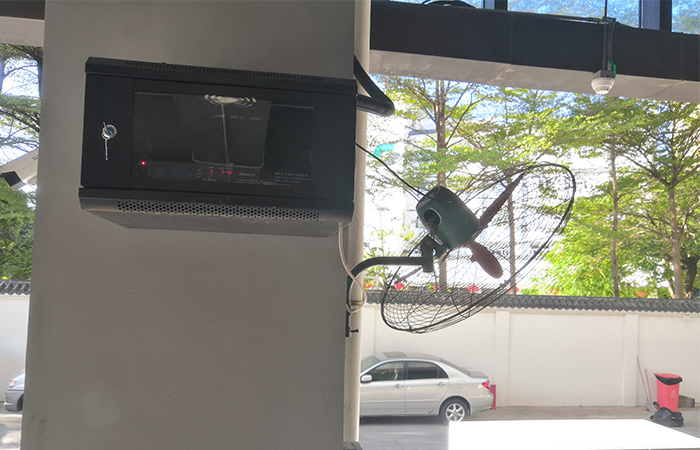

2.4 Installation diagram of the cabinet built-in device RGA30-DV8

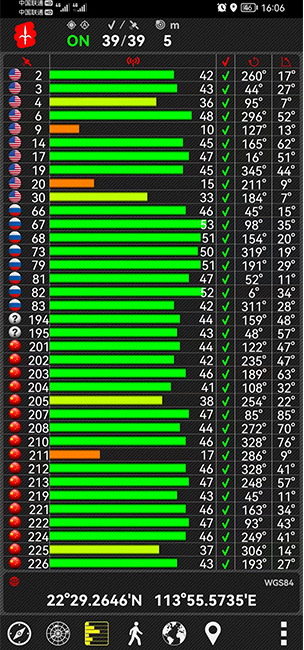

2.5 Field acceptance signal testing
Starfire Source, as a solution provider of indoor positioning and timing for bus parking, specializing in indoor signal forwarding coverage, indoor positioning system for fifteen years, has been providing signal coverage and timing solutions for bus parking, railway stations, airports and other areas across the country.
From the beginning of its establishment, it has been researching multi-system satellite forwarding to achieve satellite positioning and timing, solving signal solutions for testing, and is committed to providing multi-system satellite testing signal solutions for major laboratories and production lines and car positioning. The GNSS signal transponder, GPS signal transponder and BeiDou signal transponder are widely used in laboratory testing, production line manufacturing testing, automotive positioning and timing and other places where satellite signal coverage is required.
