Shenzhen Window of the World Metro Bus Feeder Parking Indoor Positioning and Timing Solution

2023.04.21



Location: Window of the World Metro Bus Interchange
Constructor: Shenzhen GEMS NAVIGATION  Electronics Co.,Ltd.

Project Description
In 2022, Starfire provided a bus company in Shenzhen with GPS satellite positioning signal amplifier equipment for the installation of an indoor positioning timing system. Because most of the bus parking addresses are indoors or in the basement, the signal is blocked, resulting in no GPS Beidou signal, unable to locate and time the bus vehicles.
In view of the large area and weak signal of the Metro Bus Feeder Station, we designed an 8-port GPS Beidou signal transponder coverage system to cover the floor with GPS Beidou signals to meet the positioning and timing needs of the bus vehicles.
Solution Description

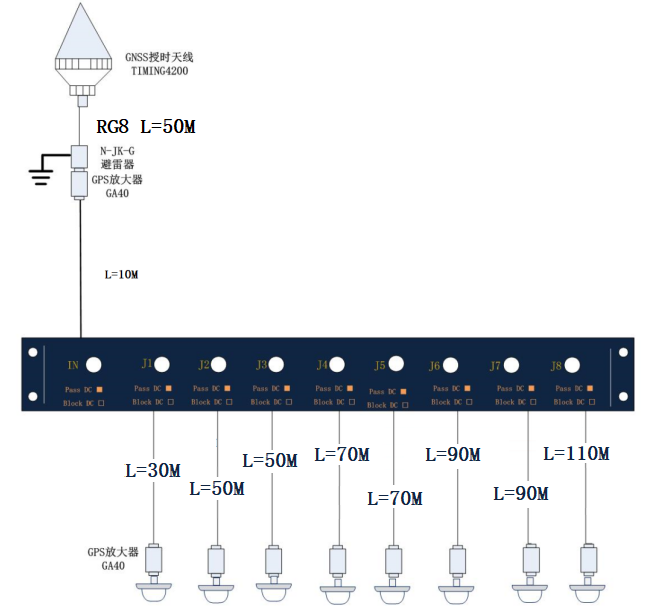

This bus timing solution uses the GNSS timing antenna TIMING4200, GPS line amplifier GA40, GPS power splitter and GPS adjustable digital stepper amplifier RGA30-DV8 to complete the forwarding and coverage of the outdoor GPS signal. The strength of the satellite signal can be adjusted to achieve the reception of GPS Beidou signals by public vehicles, positioning and timing of bus vehicles in and out of stations.


Problems solved and technical difficulties
1. solving the problem of GPS signals not being received in the bus terminal (unable to locate and time)
2. Indoor environment is complicated and GPS signal is seriously disturbed
3. accurate positioning and timing in the bus
Pictures from the scene

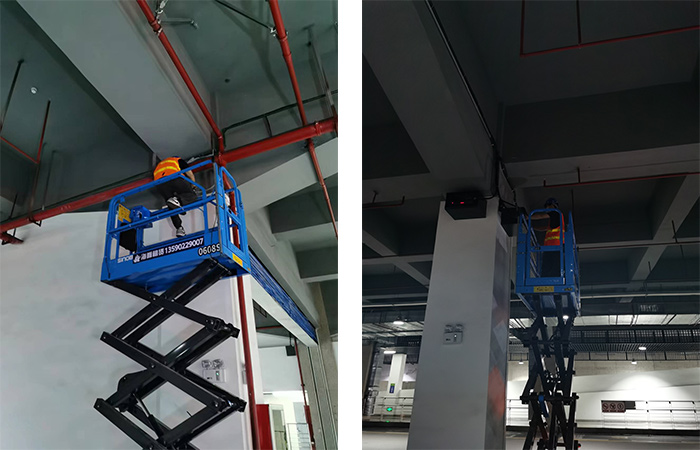

Pictures of the site

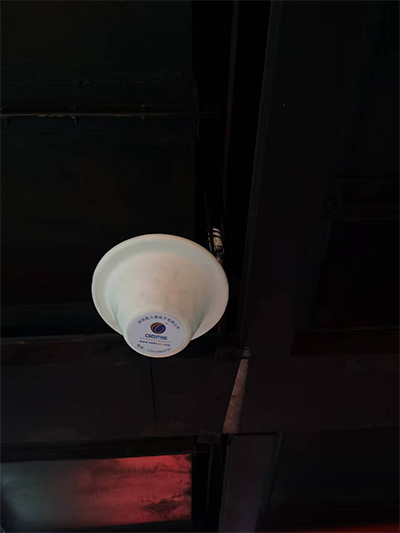

Indoor antenna GRA10

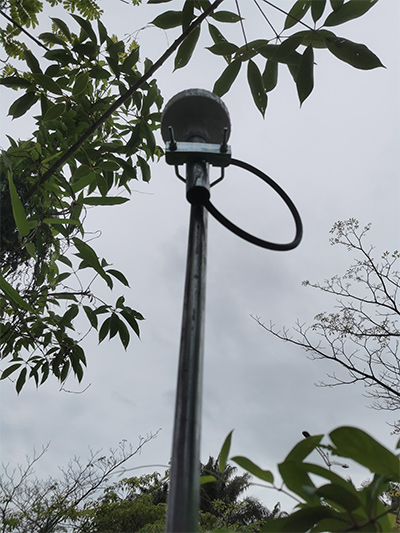

Outdoor antenna TIMING 4200

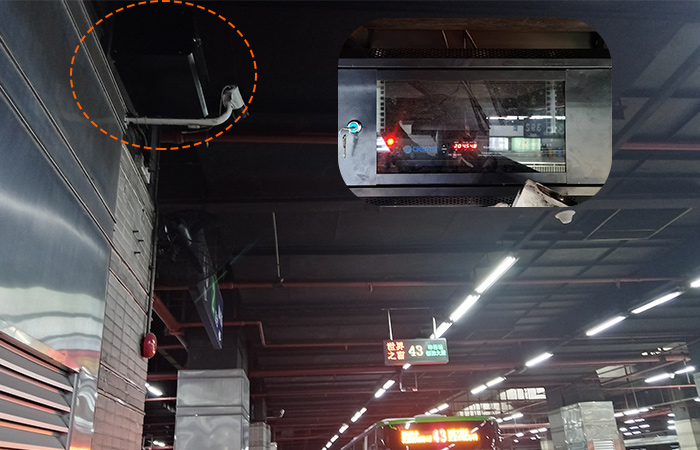

Installation diagram of the cabinet built-in device RGA30-DV8

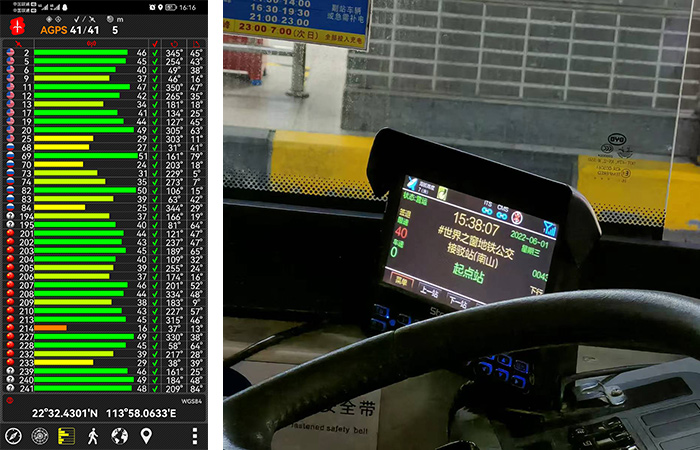

Site acceptance signal testing



   Shenzhen GEMS NAVIGATION  Electronics Co.,Ltd., as a solution provider of indoor positioning and timing for bus parking, specializing in indoor signal forwarding coverage, indoor positioning system for fifteen years, has been providing signal coverage and timing solutions for bus parking, railway stations, airports and other areas across the country.
   From the beginning of its establishment, it has been researching multi-system satellite forwarding to achieve satellite positioning and timing, solving signal solutions for testing, and is committed to providing multi-system satellite testing signal solutions for major laboratories and production lines and car positioning. The GNSS signal transponder, GPS signal transponder and BeiDou signal transponder are widely used in laboratory testing, production line manufacturing testing, automotive positioning and timing and other places where satellite signal coverage is required.
